Fiamma Locking Water Filler Cap Assembly - Black or White
Couldn't load pickup availability
ORDER BEFORE 2PM SAME DAY DISPATCH
30 DAY RETURNS
FOR PEACE OF MIND
NEED HELP? GET IN TOUCH WITH OUR TEAM
- Description
- Shipping & Returns
- Reviews
Fiamma locking fresh water filler cap assembly for caravans, motorhomes and campervans, updated with a new design for 2026.
The externally mounted inlet provides a filling point for the vehicle's onboard fresh water tank. It features a removable locking cap, a 40mm water hose connection and a separate 10mm breather connection.
Available in black or white, the assembly is supplied with two keys, a sealing gasket and three mounting screws.
Specifications
-
Brand: Fiamma
-
Product: Locking Water Cap
-
Version: 2026 restyled model
-
Colours: Black or White
-

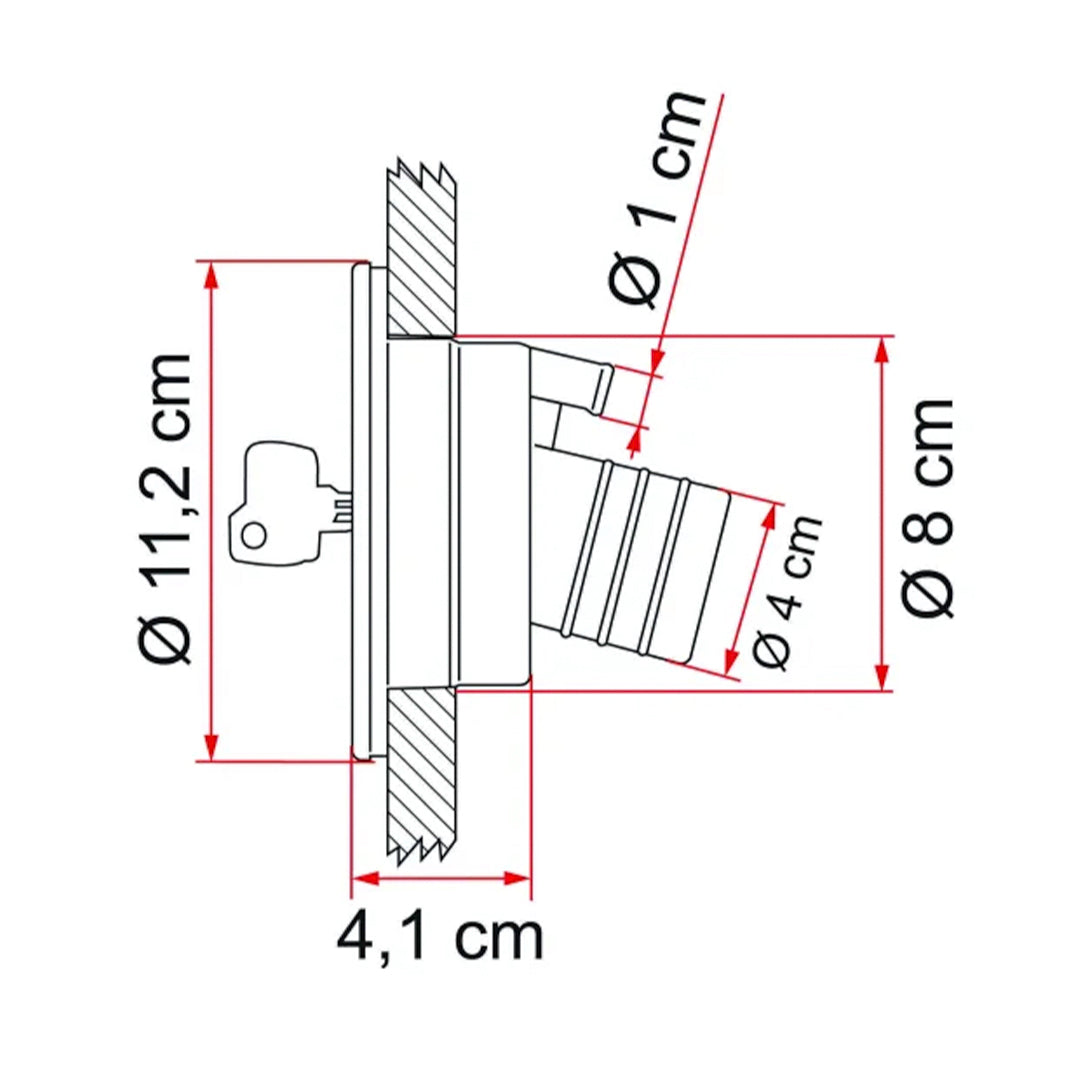

Overall fascia diameter: 114mm
-
Water hose connection: 40mm
-
Breather connection: 10mm
-
Installation hole: 83mm (Fiamma fitting instructions)
-
Weight: Approximately 0.2kg
-
Includes: Locking filler assembly, 2 keys, gasket and 3 fixing screws
Part numbers
-

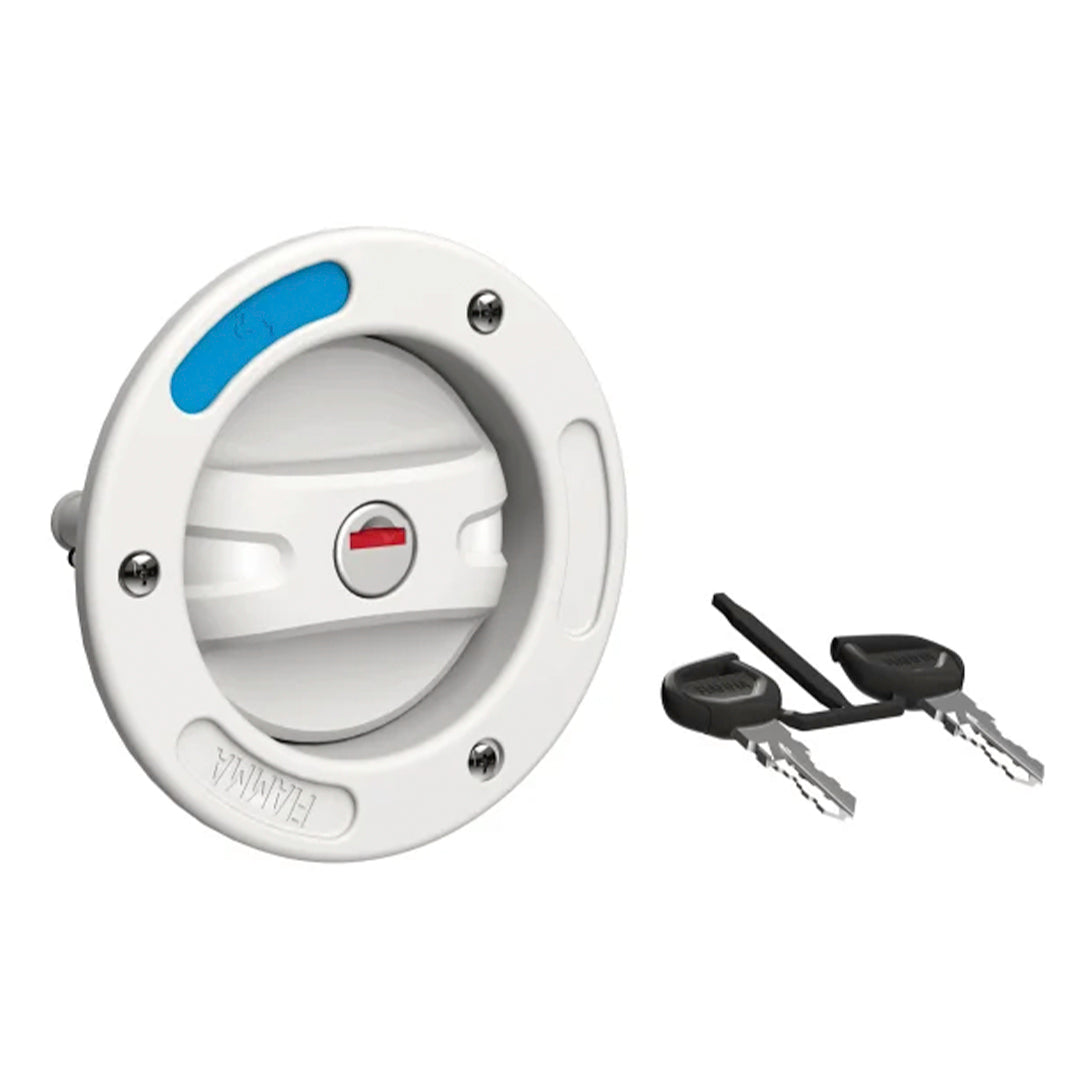

White: 94715-002
-

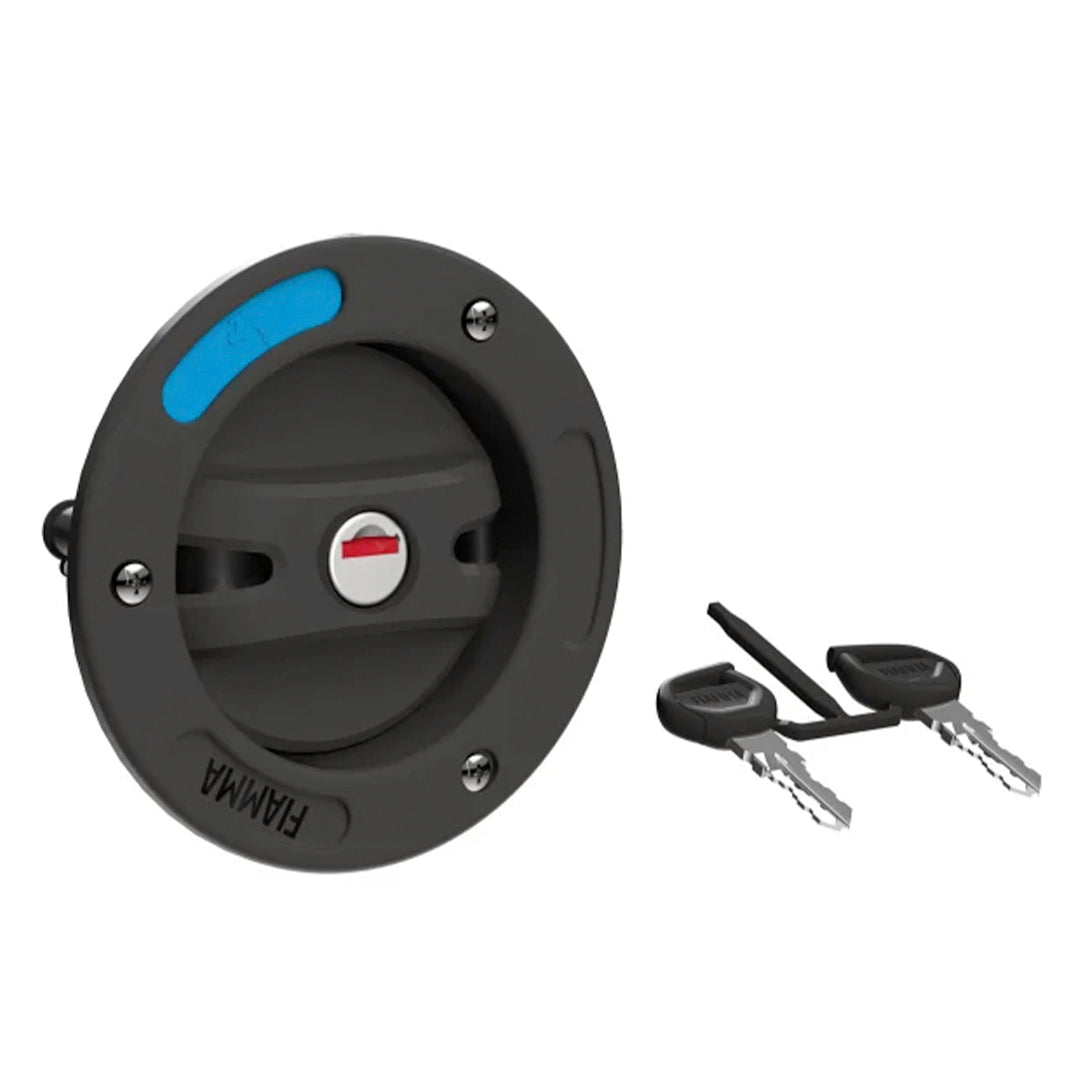

Black: 94715-001
-
Previous white reference: 94715-010
-
Previous black reference: 94715-005
Before ordering
Check the dimensions of your existing water filler, particularly the mounting hole and hose connections. Earlier Fiamma water filler designs may have different dimensions.
